Compact Lab Freeze Dryer MD-10N/B with Vial Sealing for Pharmaceuticals

Name: Compact Lab Freeze Dryer MD-10N/B with Vial Sealing for Pharmaceuticals
Brand: Hefei Midea Biomedical Co., Ltd
SKU: MD-10N/a
Price: 2,500.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	Kota Hefei Cina
Nama merek:	Midea Biomedical
Sertifikasi:	CE. ISO9001 ,UL
Nomor model:	MD-10N/a

Informasi Rinci

Tempat asal:

Kota Hefei Cina

Nama merek:

Midea Biomedical

Sertifikasi:

CE. ISO9001 ,UL

Nomor model:

MD-10N/a

Model no.:

MD-10N/b

Area pengering (㎡）:

0,08

Kemampuan untuk menangkap air (kg/batch):

Kuantitas Botol Schering φ12mm:

560

Kuantitas Botol Schering φ16mm:

285

Kuantitas Botol Schering φ22mm:

165

Kapasitas beban pelat (l):

Ukuran Plat (mm):

Φ180

Jarak pelat (mm):

Kuantitas baki （pc）:

Ukuran ruang dingin (mm):

Φ250 × 150

Perangkap dingin suhu terendah (° C):

≤-56 (tidak ada beban)

Vakum tertinggi (Pa):

≤5 (tidak ada beban)

Konsumsi Daya KW.H (220V50Hz):

0,95

Suhu amibient (° C):

≤25

Dimensi keseluruhan (mm):

610 (L) × 482 (W) × 455 (H) +440

Berat (kg):

Suhu pemanas (° C):

TIDAK

Menyoroti:

High Light

Menyoroti:

compact lab freeze dryer

pharmaceutical freeze dryer with sealing

MD-10N/B vial sealing freeze dryer

Informasi Perdagangan

Kuantitas min Order:

10 unit

Harga:

US $ 5000 / 1 unit

Kemasan rincian:

840mm*720mm*700mm

Waktu pengiriman:

7 hari kerja

Syarat-syarat pembayaran:

L/C, D/A, D/P, T/T, Western Union, Moneygram

Menyediakan kemampuan:

8000 Unit Per Tahun

Deskripsi Produk

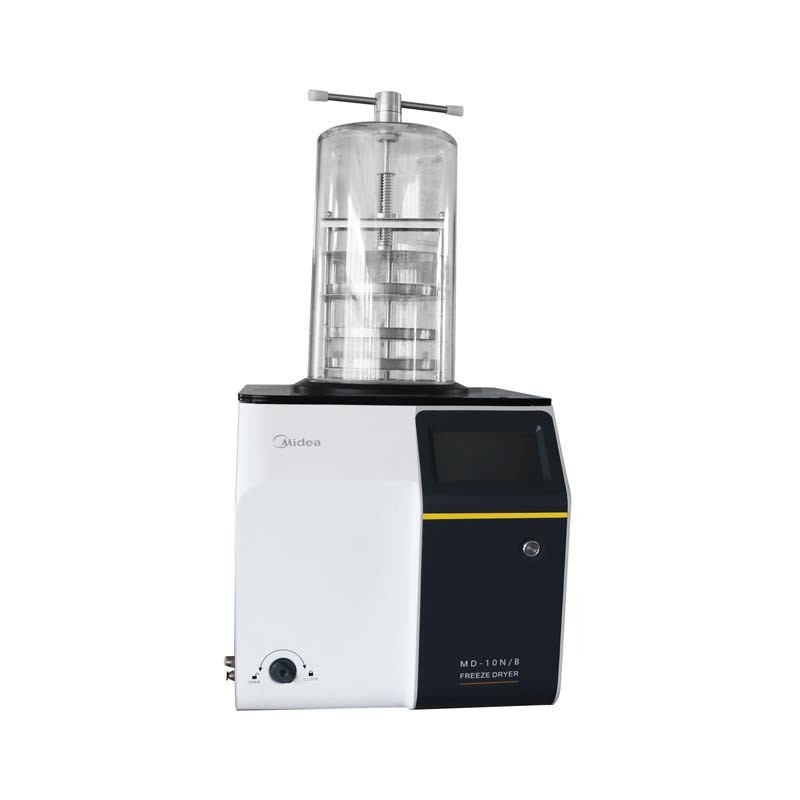

Compact Lab Freeze Dryer MD-10N/B with Vial Sealing for Pharmaceuticals

MD-10N/B Freeze Dryer with In Situ Vial Sealing

This compact lyophilizer integrates vacuum sealing technology tailored for penicillin vials and prefilled syringes. Perfect for pharmaceutical labs requiring sterile sample packaging within controlled environments:

Achieves airtight seals while maintaining vacuum conditions to eliminate contamination
Features GMP-compliant 7-inch LCD data tracking with USB export for critical process validation
Polycarbonate chamber provides full visibility during lyophilization and sealing cycles
Cold trap temperature control reduces vacuum pump wear for sustained reliability
Seamless inert gas backfill extends shelf life of sensitive biologics

Ideal for: vaccine research, antibiotic stability testing, biobank samples

Product Series Model Comparison

Model Name	MD-10N/A	MD-10N/B	MD-10N/C
Dryer area(㎡)	0.12	0.08	0.12
Ability to capture water(Kg/batch)	3
Schering bottle quantity Φ12mm	920	560	920
Schering bottle quantity Φ16mm	480	285	480
Schering bottle quantity Φ22mm	260	165	260
Eggplant shape bottle	0	0	8
Plate load capacity (L)	1.5	1	1.5
Plate size(mm)	Φ200	Φ180	Φ200
Plate distance (mm)	70
Tray quantity(pc)	4	3	4
Cold chamber size(mm)	Φ250×150
Cold trap the lowest temperature(°C)	≤-56 (No load)
Ultimate vacuum(Pa)	≤5 (No load)
Power Consumption kw.h(220V50Hz)	0.95
Amibient temperature(°C)	≤25
Overall dimension(mm)	610(L)×482(W)×455(H)+440
Weight(kg)	55	61	57
Heating Temperature(°C)	No
