ntegrated Sealing Freeze Dryer MD-10N/B for Sterile Sample Packaging

Name: ntegrated Sealing Freeze Dryer MD-10N/B for Sterile Sample Packaging
Brand: Hefei Midea Biomedical Co., Ltd
SKU: MD-10N/a
Price: 2,500.00 USD
Availability: InStock

Rincian produk:

Tempat asal:	Kota Hefei Cina
Nama merek:	Midea Biomedical
Sertifikasi:	CE. ISO9001 ,UL
Nomor model:	MD-10N/a

Informasi Rinci

Tempat asal:

Kota Hefei Cina

Nama merek:

Midea Biomedical

Sertifikasi:

CE. ISO9001 ,UL

Nomor model:

MD-10N/a

Model no.:

MD-10N/b

Area pengering (㎡）:

0,08

Kemampuan untuk menangkap air (kg/batch):

Kuantitas Botol Schering φ12mm:

560

Kuantitas Botol Schering φ16mm:

285

Kuantitas Botol Schering φ22mm:

165

Kapasitas beban pelat (l):

Ukuran Plat (mm):

Φ180

Jarak pelat (mm):

Kuantitas baki （pc）:

Suhu amibient (° C):

≤25

Dimensi keseluruhan (mm):

610 (L) × 482 (W) × 455 (H) +440

Berat (kg):

Suhu pemanas (° C):

TIDAK

Menyoroti:

High Light

Menyoroti:

integrated sealing freeze dryer

sterile sample packaging freeze dryer

lab freeze dryer with warranty

Informasi Perdagangan

Kuantitas min Order:

10 unit

Harga:

US $ 5000 / 1 unit

Kemasan rincian:

840mm*720mm*700mm

Waktu pengiriman:

7 hari kerja

Syarat-syarat pembayaran:

L/C, D/A, D/P, T/T, Western Union, Moneygram

Menyediakan kemampuan:

8000 Unit Per Tahun

Deskripsi Produk

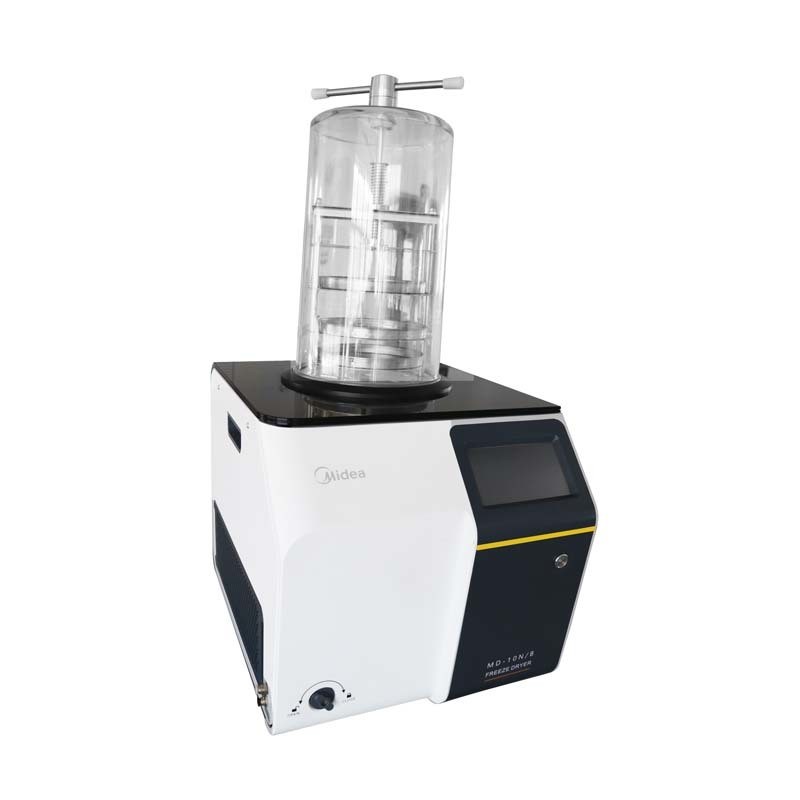

Integrated Sealing Freeze Dryer MD-10N/B for Sterile Sample Packaging

Seamless Sterile Drying and Sealing for Critical Samples

The MD-10N/B freeze dryer simplifies pharmaceutical workflows by combining lyophilization and sterile vial sealing in one benchtop system. Engineered for penicillin vials, prefilled syringes, and biologics, it ensures samples never risk contamination between drying and packaging.

Key User Advantages:

Instant Sealing - Vacuum-seal samples under inert gas (N₂/Ar) mid-cycle with adjustable pressure caps
Zero Training Curve - Operate via intuitive 7-inch LCD with preloaded GMP protocols
Error-Proof Documentation - Autosave and USB-export validation-ready sealing curves (time/temperature/vacuum logs)
Space-Optimized Design - 61kg stainless steel body fits laminar hoods while dampening vibrations
Resource Savings - Programmable cold trap extends vacuum pump service life by 35%

Product Series Model Comparison

Model Name	MD-10N/A	MD-10N/B	MD-10N/C
Dryer area(㎡)	0.12	0.08	0.12
Ability to capture water(Kg/batch)	3
Schering bottle quantity Φ12mm	920	560	920
Schering bottle quantity Φ16mm	480	285	480
Schering bottle quantity Φ22mm	260	165	260
Eggplant shape bottle	0	0	8
Plate load capacity (L)	1.5	1	1.5
Plate size(mm)	Φ200	Φ180	Φ200
Plate distance (mm)	70
Tray quantity(pc)	4	3	4
Cold chamber size(mm)	Φ250×150
Cold trap the lowest temperature(°C)	≤-56 (No load)
Ultimate vacuum(Pa)	≤5 (No load)
Power Consumption kw.h(220V50Hz)	0.95
Amibient temperature(°C)	≤25
Overall dimension(mm)	610(L)×482(W)×455(H)+440
Weight(kg)	55	61	57
Heating Temperature(°C)	No
